XenonZcar.com - 280ZX S130 Transmission Differences
In the 1979 to 1983 S130 280zx there was six transmissions that were offered. Below you will find the differences and specifications.
>Manual Transmissions
Datsun/Nissan made several 4 and 5-speed manual transmissions available in the second generation Z car or S130. The 1981-1983 FS5W71B is a "close ratio" five-speed transmission, while the FS5R90A 5-speed found in the 1983 280ZX Turbo is a "wide ratio" transmission. Close ratio transmissions are preferred for road racing as they allow the driver to maintain a tighter rev range between gears compared to wide ratio versions.
Finding the "optimum" transmission for your car all depends on what you are wanting from your car. For most people, the "best" transmission is what is already in your car.
You can tell the difference between the FS5W71B and the FS5R90A by the shifter mounting.
| Gear Ratio / Transmission Model | 1979 F4W71B | 1979-1980 FS5W71B | 1981-1983 FS5W71B | 1983 FS5R90A |
|---|---|---|---|---|
| 1st | 3.321 | 3.321 | 3.062 | 3.500 |
| 2nd | 2.077 | 2.077 | 1.858 | 2.144 |
| 3rd | 1.308 | 1.308 | 1.308 | 1.357 |
| 4th | 1.00 | 1.00 | 1.00 | 1.00 |
| 5th | N/A | 0.864 | 0.745 | 0.780 |
Throw Out Bearing Differences

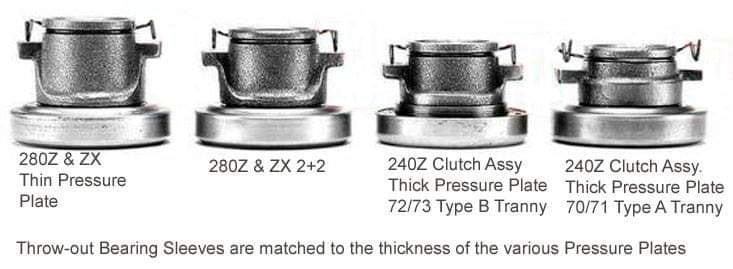

Throughout the years, there were different throw out bearing sizes used in the S30-S130 cars. The image below will explain the differences.
