XenonZcar.com - The Definitive Guide To Z31 Louvers
There were many companies that offered Louvers for the Z31 as this was a Popular styling option in the 80s. There were Rear Window Louvers, Side Window Louvers, and even Headlight Louvers. Here we will try to explain to the best of our ability the differences of each manufacture for these louvers.
Z31 Rear Window Louvers

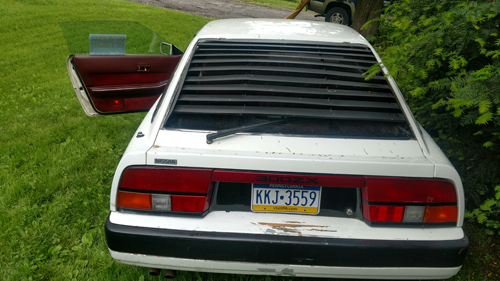

1984-1986 300zx Factory Option Louvers (N/T & Turbo Models) |
|
Manufacturing Company |
NISMO Aftermarket Brand |
Availability |
Not Available |
Average Current Value |
$250-$300 Used from online auctions and classified forums |
Material |
Aluminum |
Info/Discerning Features |
These were apparently factory options on some vehicles, perhaps from 85 onward. They should fit all 84-86 models without the rear seats. They have a cut out hole at the very top in the middle for the rear washer nozzle, hinges at the top, two rows of shade connectors, and posts |
1984-1986 300zx Factory Option Louvers (2+2) |
|
Manufacturing Company |
NISMO Aftermarket Brand |
Availability |
Not Available |
Average Current Value |
$250-$300 Used from online auctions and classified forums |
Material |
Aluminum |
Info/Discerning Features |
These were apparently factory options on some vehicles, perhaps from 85-86 models. They should fit all 84-86 2+2 with rear seats. They have a cut out hole at the top in the middle for the rear washer nozzle, hinges at the top, two rows of shade connectors, and posts underneath for propping them up and cleaning the rear window. They latch with door type latches that secure to under the side hatch trim. They are raised very high as pictured, with straight high edges. They should have 7 full shade slats and the 8th top piece is a part of the edging. 30 inches from top to bottom |
1987-1989 300zx Factory Option Louvers (N/T & Turbo Models) |
|
Manufacturing Company: |
NISMO Aftermarket Brand |
Availability: |
Not Available |
Average Current Value: |
$250-$300 Used from online auctions and classified forums |
Material: |
Aluminum |
Info/Discerning Features: |
These were apparently factory options on some vehicles, perhaps from 87-89, and should fit all 87-89 models without the rear seats. They have a raised top edge for the third break light, and are recessed in the middle of the slats as part of the design, hinges at the top, two rows of shade connectors, and posts underneath for propping them up and cleaning the rear window.. They latch with door type latches that secure to under the side hatch trim. They are raised very high as pictured, with straight high edges. They should have 9 full shade slats and the 10th top piece is part of the edging. 34+ inches from top to bottom |
1987-1989 300zx Factory Option Louvers (2+2) |
|
Manufacturing Company: |
NISMO Aftermarket Brand |
Availability: |
Not Available |
Average Current Value: |
$250-$300 Used from online auctions and classified forums |
Material: |
Aluminum |
Info/Discerning Features: |
These were apparently factory options on some vehicles, perhaps from 87-89, and should fit all 87-89 models with the rear seats. They have a raised top edge for the third break light, and are recessed in the middle of the slats as part of the design, hinges at the top, two rows of shade connectors, and posts underneath for propping them up and cleaning the rear window.. They latch with door type latches that secure to under the side hatch trim. They are raised very high as pictured, with straight high edges. They should have 7 full shade slats and the 8th top piece is part of the edging. 30 inches from top to bottom |
1984-1989 300zx Chastain "Shadow Louvers" (N/T, Turbo Models) |
|
Manufacturing Company: |
Chastain, Glendale Ca |
Availability: |
Not Available |
Material: |
Aluminum |
Average Current Value: |
$250-$300 Used from online auctions and classified forums |
Info/Discerning Features: |
These were more desirable aftermarket louvers from the mid eighties. They should fit all 84-89 models without rear seats, perhaps needing some minor modifications for later models with the third break light. There may or may not be 2+2 versions out there, which I would imagine would look similar but be shorter in height. They have a notch cut out at the very top in the middle for the rear washer nozzle, fasteners at the top and two rows of shade connectors. They latch with door type latches that secure to under the side hatch trim, and may or may not come with locks and a key to open. They are raised moderately high, with more rounded edges and holes cut into the side just more then half way up. They should have 7 full shade slats, including the top piece of edging. 34+ inches from top to bottom |
1984-1989 300zx Interpart Louvers (N/T, Turbo Models) |
|
Manufacturing Company: |
Interpart |
Availability: |
Not Available |
Average Current Value: |
$250-$300 Used from online auctions and classified forums |
Material: |
Aluminum |
Info/Discerning Features: |
These were another set of aftermarket louvers from the mid eighties. They should fit all 84-89 models without rear seats, perhaps needing some minor modifications for later models with the third break light. There may or may not be 2+2 versions out there, which I would imagine would look similar but be shorter in height. They have a notch cut out at the very top in the middle for the rear washer nozzle, fasteners at the top and two rows of shade connectors. They latch with door type latches that secure to under the side hatch trim, and may or may not come with locks and a key to open. They are raised moderately high, with very angular trapezoid like edges, and a rim around the bottom. They should have 8 full shade slats, including the top piece of edging. 34+ inches from top to bottom |
1984-1989 300zx MSA Louvers (N/T, Turbo Models) |
|
Manufacturing Company: |
Unknown, perhaps later model Interpart |
Availability: |
Not Available |
Average Current Value: |
$250-$300 Used from online auctions and classified forums |
Material: |
Aluminum |
Info/Discerning Features: |
These were yet another set of aftermarket louvers, remanufactured for MSA online. They should fit all 84-89 models without rear seats, perhaps needing some minor modifications for later models with the third break light. There may or may not be 2+2 versions out there, which I would imagine would look similar but be shorter in height. They have a notch cut out at the very top in the middle for the rear washer nozzle, fasteners at the top and one row of shade connectors. They latch with door type latches that secure to under the side hatch trim, and may or may not come with locks and a key to open. They are raised less than moderately high, with a more rounded trapezoid like edges, a thick rim around the bottom, and also perhaps a large round rivet on the bottom corners. They should have 10 full shade slats, including the top piece of edging. 34+ inches from top to bottom |
1984-1989 300zx ABS Plastic Louvers (N/T, Turbo Models) |
|
Manufacturing Company: |
Astra Hammond or Willpak |
Availability: |
Available at sfxperformance.com |
Average Current Value: |
$250 Used from online auctions and classified forums |
Material: |
ABS Plastic |
Info/Discerning Features: |
These are the last currently manufactured louvers for the z31 cars, and I want to add in: they are atrocious. There may even be several different kinds. They should fit all 84-89 models without rear seats, perhaps needing some minor modifications for later models with the third break light. There are also 2+2 versions out there, which I would imagine would look similar but be shorter in height. They have a notch cut out at the very top in the middle for the rear washer nozzle and two rows of shade connectors. They secure with plates and bolts to the hatch trim. They are raised moderately high, with a more rounded trapezoid like edges. They should have 7 full shade slats, including the top piece of edging for the n/t and turbo, and 5 full slats for t he 2+2. 34+ inches from top to bottom for n/t and turbo, 30 inches for 2+2. |
1984-1986 300zx Factory Option Inner Louvers (N/T & Turbo Models) |
|
Manufacturing Company: |
NISMO |
Availability: |
Not Available |
Average Current Value: |
$500+ Probably only found used in Japan or Europe |
Material: |
Aluminum |
Info/Discerning Features: |
A very rare item, these were apparently factory options on some 200zr model vehicles, and should fit all 84-89. They may also have been made for vehicles with the rear seat. They latch inside of the rear glass. They should have 12+ full shade slats. |
Z31 Side Window Louvers

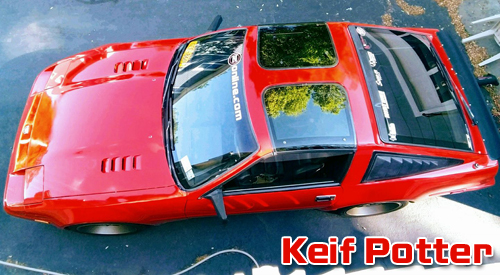

1984-1989 300zx MSA Aluminum Side Window Louvers (N/T, Turbo Models) |
|
Manufacturing Company: |
Unknown, perhaps later model Interpart |
Availability: |
Not Available |
Average Current Value: |
$150-$500, from online businesses like sfxperformance.com |
Material: |
Aluminum |
Info/Discerning Features: |
These are the only pair of aluminum side louvers, remanufactured for MSA online. They should fit all 84-89 models without rear seats. There may or may not be 2+2 versions out there, which I would imagine would look similar but be longer/shaped slightly differently. They secure with plates and bolts, may or may not have large circular rivet on the bottom, and should have 7 full shade slats, including the top piece of edging. |
1984-1989 300zx ABS Plastic Side Window Louvers (N/T, Turbo & 2+2 Models) |
|
Manufacturing Company: |
Willpak |
Availability: |
sfxperformance.com |
Average Current Value: |
$150, from online businesses like sfxperformance.com |
Material: |
ABS |
Info/Discerning Features: |
These are the last currently manufactured side louvers for the z31 cars. They should fit all 84-89 models without rear seats. There are also 2+2 versions available, which look similar but are longer and shaped slightly differently. They secure with plates and bolts, should have 7 full shade slats, including the top piece of edging. |
Z31 Headlight Louvers
1984-1986 Custom Headlight Louvers(N/T, Turbo & 2+2 Models) |
|
Manufacturing Company: |
Custom, Aftermarket |
Availability: |
Not Available |
Average Current Value: |
$50+ Used from online auctions and classified forums |
Material: |
Aluminum |
Info/Discerning Features: |
These were apparently custom made by a small manufacturer. They should fit all 84-86 models. They are more square, lack the rounded outer corners, and should secure with two bolts. They should have 4 full shade slats. |

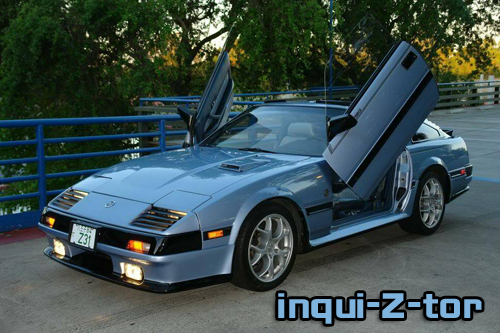

1987-1989 Aftermarket Headlight Louvers (N/T, Turbo & 2+2 Models) |
|
Manufacturing Company: |
NISMO Aftermarket |
Availability: |
Not Available |
Average Current Value: |
$50+ Used from online auctions and classified forums |
Material: |
Aluminum |
Info/Discerning Features: |
These were apparently a Japanese aftermarket item. They should fit all 87-89 models, and perhaps even the 84-86 models as well. They are more rounded, with very rounded outer corners, and should secure with two bolts. They should have 4 full shade slats. |
Z31 Louvered Fog Lights
1984-1989 300zx NISMO Auto-Louvers (N/T, Turbo & 2+2 Models) |
|
Manufacturing Company: |
NISMO |
Availability: |
Not Available |
Average Current Value: |
$100+ Used from online auctions and classified forums, also perhaps special order from Japan. |
Material: |
Plastic & Aluminum |
Info/Discerning Features: |
These were apparently a Japanese aftermarket item. They should fit all 84-89 models. They have NISMO written on the louvers and clear lenses covering the light. They may come in either amber or clear bulb color. |
1984-1989 300zx Lumenators (N/T, Turbo & 2+2 Models) |
|
Manufacturing Company: |
Blazer Intl. Corp, Franklin Park, Il |
Availability: |
Not Available |
Average Current Value: |
$50+ Used from online auctions and classified forums |
Material: |
Plastic & Aluminum |
Info/Discerning Features: |
These were an aftermarket item from the 80s. They should fit all 84-89 models. They lack the NISMO written on the louvers and also lack the clear lenses covering the light. They may come in either amber or clear bulb color. |
Sources used on this page:
- Written By TurboSpeedFreak of Zcar.com
