Z31 (CHTS) CYLINDER HEAD TEMPERATURE SENSOR

Cylinder Head Temperature Sensor

Overview

The Cylinder Head Temperature Sensor (CHTS) is built into the cylinder head and monitors temperature changes, sending a signal to the ECU.

How It Works

The sensor uses a thermistor—a resistor sensitive to temperature. As cylinder head temperature rises, the electrical resistance of the thermistor decreases.

Z31 cylinder head temperature sensor location next to the thermostat housing
The CHTS sits in the front of the engine next to the thermostat housing.

Warning: do this work at your own risk. We are not responsible for any problems or damage caused by your own work.

Part Numbers

Part Number Description
22630-01P01 (CHTS) Cylinder Head Temperature Sensor
24079-01P00 Cylinder Head Temperature Sensor Sub-Harness

Common Problems

  • Missing or backfiring on cold starts. ECU code 13.
  • Fouling out plugs (running rich)
  • Black smoke
  • Hard starting or poor idle when warm, because the ECU thinks the engine is cold
  • A brittle or corroded sub-harness. It sits right against the hot engine and coolant neck, and it's often the real cause instead of the sensor.

Troubleshooting

Testing CHTS

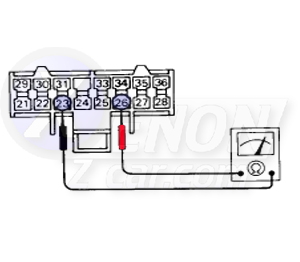

To test, measure the Ohms across the 16 pin ECU connector on terminals 23 and 26. The chart will provide the correct readouts:

Cylinder Head Temperature Resistance in Ohms
Above 20°C (68°F) Below 2.9kΩ
Below 20°C (68°F) Above 2.1kΩ

If the readings are OK here, then replace the ECU. If the readings are out of spec, first check the harness for damage including corrosion and broken wires.

If the harness looks OK, then you can test the sensor using the chart below.

CHTS Resistance Chart

Replacement CHTS Sub-Harness

Z31 cylinder head temperature sensor sub-harness

The short sub-harness between the CHTS and the engine harness sits right against the hot engine and coolant neck. After years of heat the insulation cracks and the connectors corrode, causing the same symptoms as a bad sensor.

XenonZcar sells a replacement Z31 CHTS sub-harness that replaces Nissan part 24079-01P00. If you're replacing the CHTS, for example during a timing belt job, replace the sub-harness at the same time.

View the CHTS Sub-Harness in Our Store

Alternative: Pathfinder Wet-Type Sensor in the Intake

The stock CHTS is a dry sensor that screws into the head and reads metal temperature. It's buried at the front of the engine and has a reputation for failing. Some owners instead install a wet-type coolant temperature sensor from a Nissan Pathfinder in the lower intake manifold, where it sits in the coolant flow and is much easier to reach.

  • Sensor: the sealed, wet-type sensor from a 1995 Pathfinder (Standard Motor Products / Intermotor TX18). It uses the same connector as the stock Z31 CHTS.
  • Location: the coolant port at the front of the lower intake manifold, where the injector cooling fan temperature sensor is on cars that have one. On cars without the fan, the port is plugged.
  • Wiring: route a new sub-harness from the sensor around the front of the intake to the CHTS connector on the main engine harness, and clip it securely.
  • Old sensor: the original CHTS can be left in place, unplugged, as a backup.

Cautions

  • Don't put the stock dry sensor in the intake port. It isn't sealed and will leak coolant.
  • The intake is aluminum. Use a new crush washer and tighten just enough to seal; stripping the port means expensive repairs.
  • If you remove the injector cooling fan sensor, the fans won't come on by themselves anymore.
  • The Pathfinder sensor is an aftermarket workaround, not a factory fix. For the stock location, a genuine Nissan sensor is the safest choice.

For the full write-up with photos, see CHTS Information and Relocation at The Z Garage.
